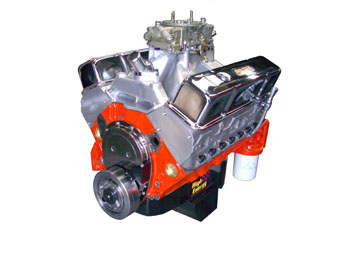

434 Sbc 15DEG - Dart/ Roller Cammed Engine (715hp) |
|
|
|
|
TORQUE: 595 ftlbs
HORSEPOWER: 715 @ 6800 RPM
CAMSHAFT: Solid Roller
CYLINDER HEADS: Racer Pro 15 degree
COMPRESSION RATIO: approx 11:1
FUEL REQUIRED: Premium Unleaded
LONG MOTOR ASSEMBLED: L434SB - $ 20,000
SHORT MOTOR KIT: S434SB $7,717
ASSEMBLED HEADS:( Call for current pricing ) APPLICATION
This SBC mountain motor with the extra cubes & torque will get even the heaviest car moving. This combo comes with a new Dart tall deck iron block & Racer Pro 15 deg alloy heads. This combination is for the serious hot rodder only and requires the use of custom made headers 1 7/8 or larger
PARTS INCLUDED: | Dart Iron Eagle tall deck block | | Manley 10 deg. Machined Valve locks | Racer Pro Alloy 15 deg cylinder heads
| | Manley 10 deg. Chrome Moly Retainers | | HV oil pan | | HP H11 Roller Dual w/damp. Springs | | Oil pump pickup | | Valve Spring Locaters | | Oil pump Shaft | | Teflon Valve Stem Seals | | Oil Pump | | SS Inlet Valves ( Sever Duty )
| | Arp Main Stud Kit | | SS Exhaust Valves ( Severe Duty )
| | 4340 Steel Stroker Crankshaft | | Polished Tall Rocker covers (Alloy)
| | H-Beam Conrods | | 15 Deg Victor Junior Intake manifold | Oil restrictor kit
| | Jessel Rockers
| | Srp Forged Pistons | | .080" wall Chrome Moly Pushrods | | Moly Rings | | Full Gasket set / O-ring Head Gaskets
| | Cam Bearings | | 9 Key Rollmaster Timing chain set | | Competition Main Bearings | | Thrust button | | Competition Big End bearings | | Solid Roller Camshaft | | Alloy Polished Timing case cover | | Offset Roller Lifters | Steel HP Harmonic Balancer | | 12 Point Arp head stud kit | Intake "Tall Deck" spacer plates
| | | |
